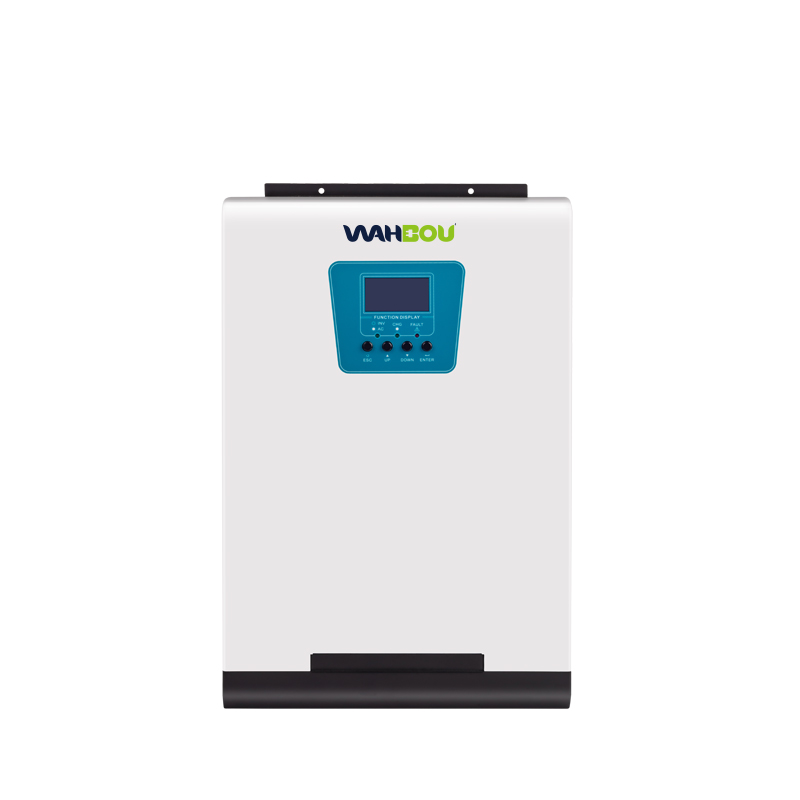

HF Solar Inverter WHI series

Product Features

1.True Pure Sine Wave Output

2.Advanced DSP Digital Control Technology

3.High Frequency Solution Design, Compact, Light Weight, High Efficiency, And Environment Friendly

4.Wide AC Input Range, Frequency Self-Adaption, Suitable For Various Grid Environment

5.With Over-voltage, Over-current, Over-Load, Short Circiut etc. Multi-protection Functions

6.Built-in MPPT Solar Controller, Maximize & Optimize the Power Generation Efficiency of PV Modules

7.Data of charging and Discharging of Battery can be Adjusted, and suitable For Requirement of Lithium Battery, VRLA(AGM) Battery,Gel Battery etc.and Prolong Battery Lifespan

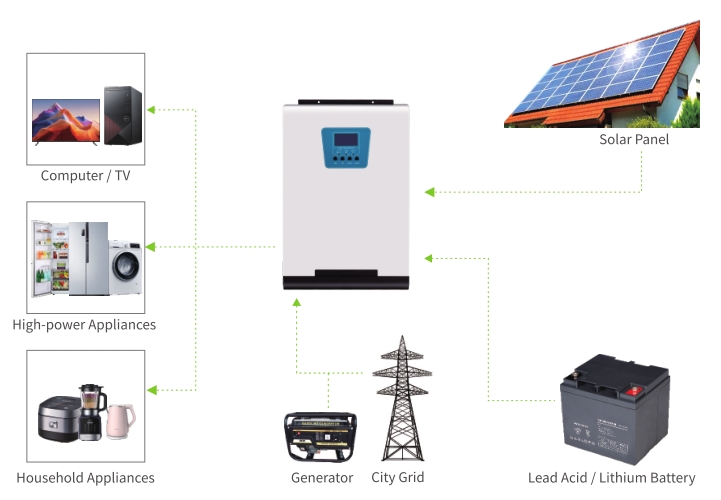

8.Compatible with Generator



Parameter

ModelWHI-3.5KVAWHI-5.5KVA
INPUT
Nominal Input   Voltage230VAC
Selectable Voltage Range170VAC~280VAC ± 7VAC (For Personal Computers)
    90VAC~280VAC ± 7VAC (For Household Appliances)
Nominal Input Frequency50Hz / 60Hz (Auto Detection)
OUTPUT
Rated Power3.5KW5.5KW
Surge CapacityRated Power * 2 times for 5 seconds
Output Voltage WaveformTrue Pure Sine Wave
Output   Voltage Regulation
    (Battery Mode)
230VAC ± 5%
Peak Efficiency 93%
Overload Protection5s @150% Load; 10s @ 110%~150% Load
Transfer Time10ms Typical (For Personal Computers);
    20ms typical (For Household Appliances)
Power FactorPF=1.0
BATTERY
Nonimal   Battery DC Voltage24VDC48VDC
Floating   Charge Voltage27VDC54VDC
Overcharge   Protection33VDC66VDC
SOLAR CHARGER AND AC CHARGER
Solar Charger TypeMPPT
Max. PV Array   Power5000W6000W
Nominal PV   Voltage240VDC
PV Array MPPT Voltage Range120~450VDC
Max.PV Array   Open Circuit Voltage500VDC
Max. Solar   Charge Current100Amp
Max. AC Charge Current 60Amp
Max.   Charge Current 100Amp
PHYSICAL
Dimension(D*W*H)   mm115*300*440
Net Weigth(kg)910
Dimension(D*W*H)   mm, w/Package215*380*520
Gross Weigth(kg), w/Package10.211.2
Communication   Interface RJ45
ENVIRONMENT
Operating   Temperature Range-10ºC ~ 50ºC
Storage   Temperature-15ºC ~ 60ºC
Humidity5% ~ 95% Relative Humidity (Non-condensing)
