Solar Inverter

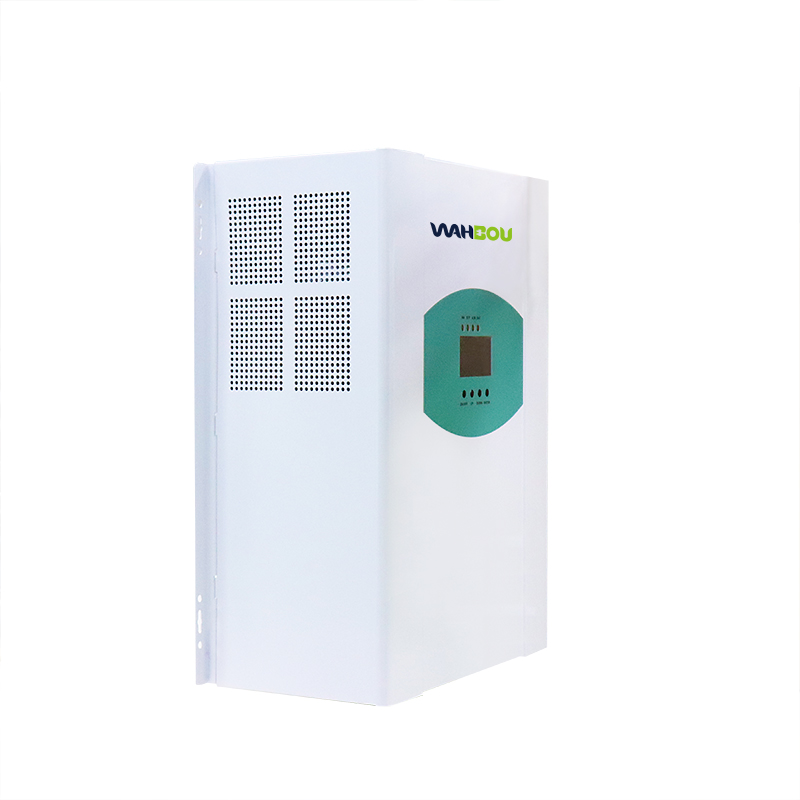

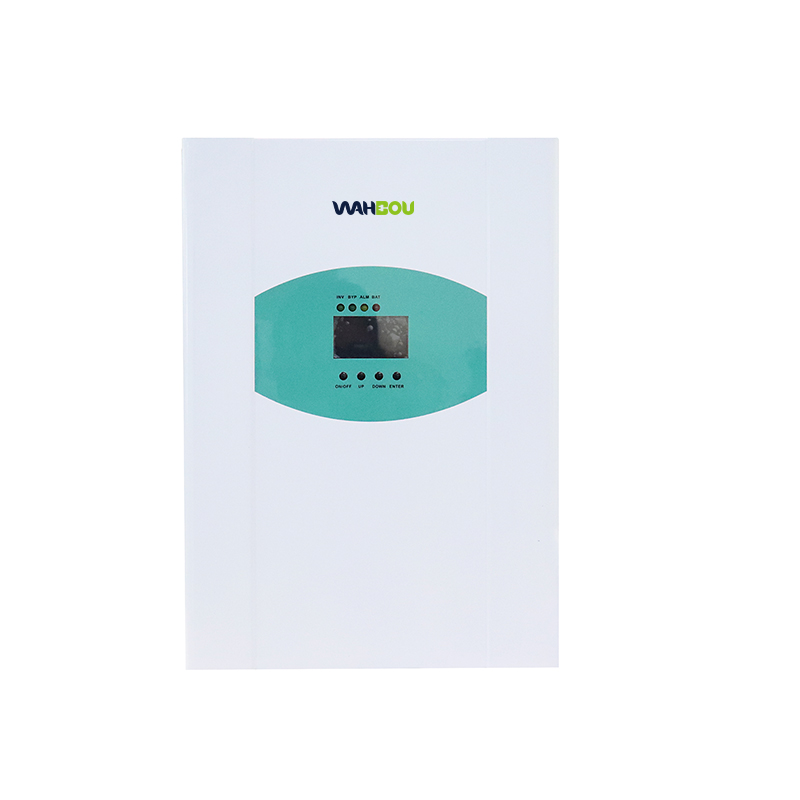

LF Soalr Inverter WLI series

Product Features

1.True Pure Sine Wave Output

2.Advanced CPU Digital Control Technology

3.Wide AC Input Range, Frequency Self-Adaption, Suitable For Various Grid Environments

4.With Over-voltage, Over-current, Over-Load, Short Circiut etc. Multi-protection Functions

5.Built-in MPPT Solar Controller, Maximize & Optimize the Power Generation Efficiency of PV Modules

6.With Toroidal lsolution Transformer, High Efficiency and Low Power Consumption

7.With Toroidal lsolution Transformer, Suitable For All Various Loads, and Environment Friendly

8.Data of charging and Discharging of Battery can be Adjusted, and Suitable For Requirement of Lithium Battery,VRLA(AGM) Battery, Gel Battery etc, and Prolong Battery Lifespan

9.Compatible with Generator

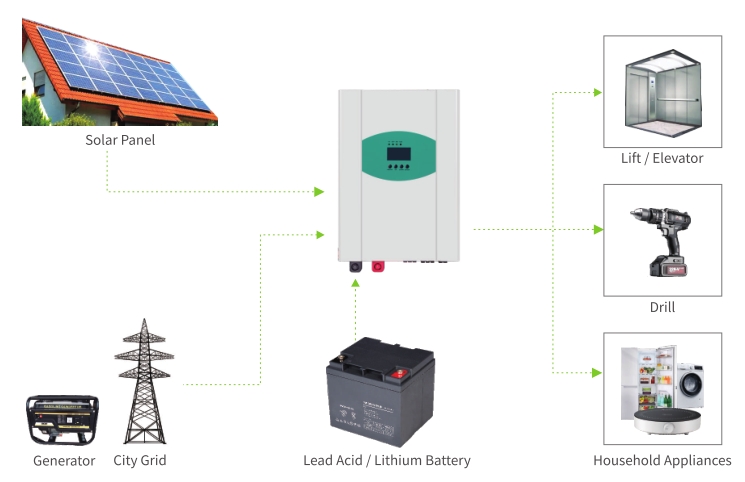

Application Area:

Office and Public Facilities, Household Appliances, Network Transmission Equipment, Manufacturing, Control system, solar Energy System,Oil Field, Drilling Field Operation etc.

Provide Stable, Reliable and Safe Power Solutions for Families, lslands, Ships and Other Small Photovoltaic Power Systems

Parameter

Model		WLI-1000	WLI-1500	WLI-2000	WLI-3000	WLI-3500	WLI-4000	WLI-5000	WLI-6000
Power	Rated Power	1000W	1500W	2000W	3000W	3500W	4000W	5000W	6000W
	Peak Power(10ms)	2000W	3000W	4000W	6000W	7000W	8000W	10000W	12000W
Input	Nominal Battery DC Voltage	12VDC or 24VDC		24VDC			48VDC
	Voltage Range	145VAC ~ 275VAC		165VAC ~ 275VAC
	Frequency Range	45Hz ~ 65Hz (50Hz/60Hz)
Output	Conversion Efficiency	≥85%
	Voltage	220VAC±2%(Battery Mode) ; 220VAC±10% (Mains Mode)
	Frequency	50Hz / 60Hz ± 0.5Hz (Battery Mode); Autotrack(Mains Mode)
	Waveform	True Pure Sine Wave
	Power Factor	PF = 1.0
Others	Protection	Under-Voltage, Over-Voltage, Overload, Over Heat, Short-Circuit
	Display	LCD
	Cooling Method	Intelligent Cooling Fan
	Communication Interface	RS232(TTL) / RS485 / Smartphone App(WI-FI or RJ45)
Mains Charging	Charging Voltage	Average Charging ; Float Charging 13.7V (a piece of battery)
	Charging Current	0 ~ 30Amp(It's subject to the model of inverter)
Working Modes (Selectable)	01	Mains Priority Mode
	02	ECO Mode
	03	Battery Priority Mode (PV)
MPPT	Charging Mode	MPPT
	Charging Current	30 Amp		60 Amp
	Max. PV Input Voltage (At Lowest Temperature)	170V (12V-48V System)
	PV Input Voltage Range	15V-120V(12V System); 30V-120V(24V System); 60V-120V(48V System)
	Max. PV Input Power	420W (12V System); 840W (24V System)		1680W (24V System)			3360W (48V System)
	Max Conversion Efficiency	>95%
	Protection	Under-Voltage, Over-Voltage, Over Heat, Short-Circuit, PV Positive/Negative Pole Reverse
Working Environment	Temperature	-20ºC ~ 60ºC
	Humidity	<95% Related Humidity (Non-condensing)
Size & Weight of Product	LengthWidthHeight (mm)	430330150		477360177			547378187
	Net Weight (KG)	13	15	18	20.5	22	30	31.5	33
Size & Weight of Product After Packaged	LengthWidthHeight (mm)	450350170		550450270			620468280
	Gross Weight (KG)	14.5	16.5	19.3	21.8	23.3	31.5	33	34.5
