Line Interactive UPS DA/DK Series 500VA-3000VA

Product Features

1. Intelligent CPU control.

2. Automatic power on when the mains power recovers.

3.Cold start function

4.Power off charging function.

5.USB/RS232/RJ-11/RJ-45 port (optional)

Model		DA600/DK600	DA1000/DK1000	DA1200/DK1200	DA2000/DK2000	DA3000/DK3000
Capacity		600VA/360W	900VA/540W	1000VA/600W	2000VA/1200W	3000VA/1800W
Input	Voltage	110/120Vac or 220/230/240Vac
	Voltage Range	67-137Vac/135-275Vac
	Frequency	50/60Hz (auto sensing)
Output	Voltage	110/120Vac or 220/230/240Vac
	Voltage Range (battery mode)	±10%
	Frequency Range (battery mode)	50Hz or 60Hz±10%
	Convert Time	Typical 4-61ms
	Waveform(battery mode)	Simulative sine waves
Battery	Battery Capacity & Qty	12V/7AHX1	12V/9AHX1	12V/7AHX2	12V/9AHX2	12V/7AHX4
	Charge Time	8 hourts up to 80-90%
Protection Function (overall protection)		Auto detection, discharge protection, output short-circuit protection, overload protection

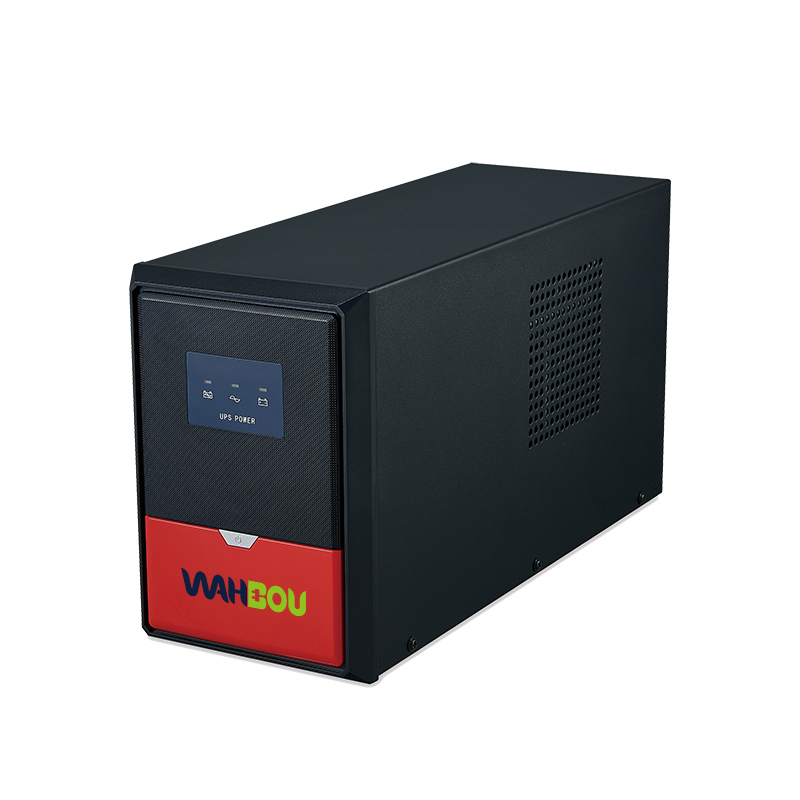

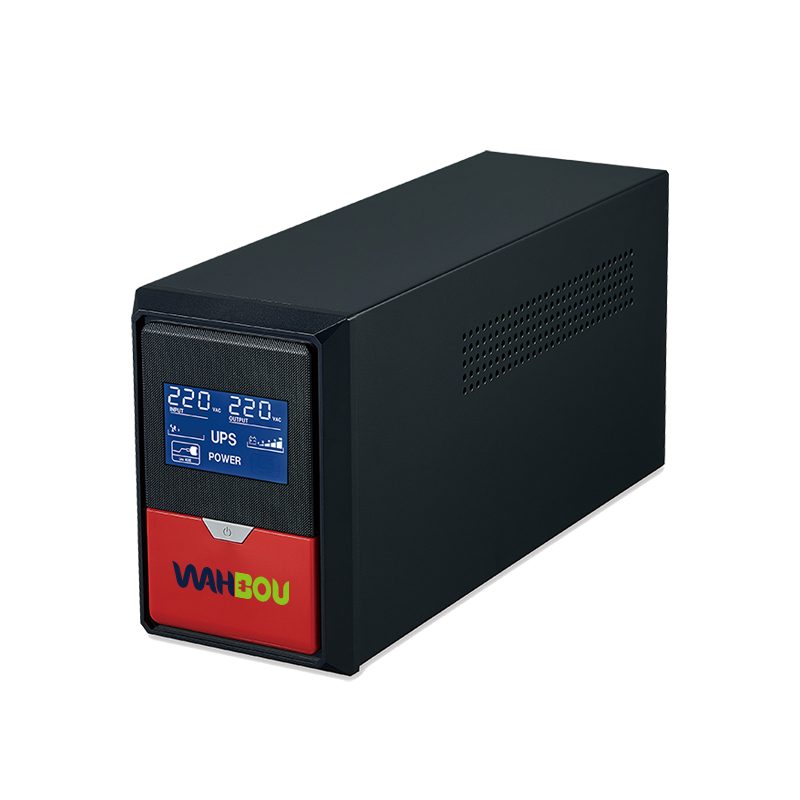

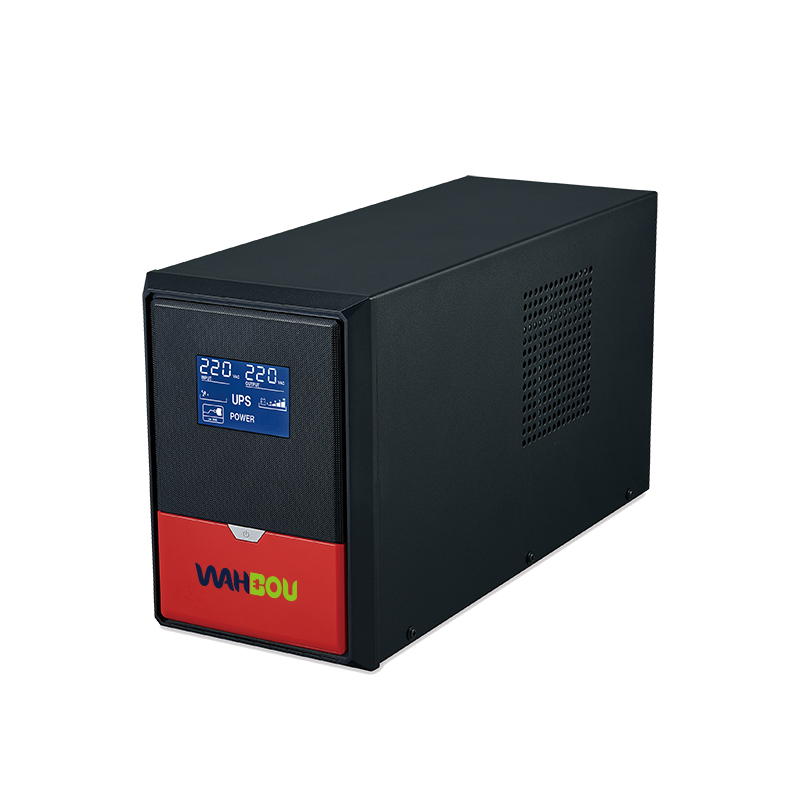

Display		DA series is LED display, DK series is LCD display
Warning Notices	Battery Mode	Every 4 seconds one beep
	Low Battery Capacity	Every 1 second one beep
	Overload	Every 1 second one beep
	Fault	Keep beeping
Environment	Humidity and Temperature	0-90% humidity and 0-40℃ temperature
	Noise	40dB
Communication Port USB/RS232		Support Windows XP/Vista, Windows 7/8, Linux Unix, and MAC
Dimension (LxWxH) mm		320x90x140	330x100x150	365x140x165	365x140x165	395x145x210
Weight		5.2kg	6.0kg	10.0kg	12.6k	21kg
