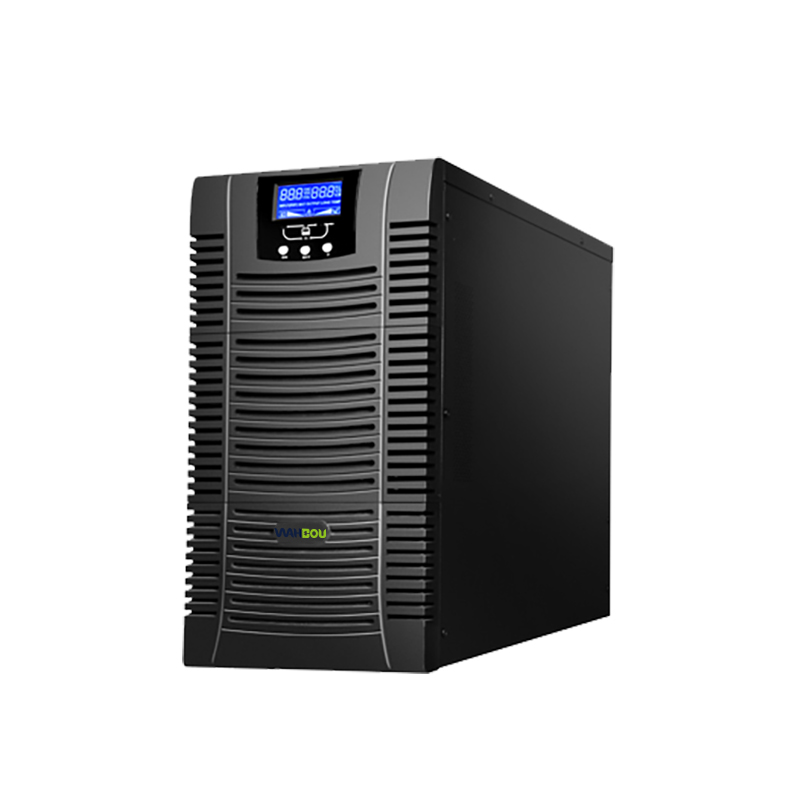

Single-phase input single-phase output ST6-10KVA

Product Features

Wider extension functions,

1.Conveter function

2.EPO (Emergency Power Off)

3.EC0 (Econimic mode)

4.RS232 is standard configuration (USB interface optional)

5.Support SNMP card

6.Ajustable output voltage and frequency on display screen is available

ST6K PLUS-ST10K PLUS.jpg

Model		ST6KVA	ST6KS	ST10KVA	ST10KS
Rated Power		6kVA/5.4kW		10kVA/9kW
Input	Voltage Range	120-275Vac 1P2W+G
	Working Frequency Range	40-70Hz (settable)
	Input Power Factor	≥0.99
Output	Rated Voltage and Accuracy	220Vac(1±1%) 1P2W+G
	Output Frequency	46-54Hz synchronize with mains power; 50Hz (Mains power between 40-46Hz and 54-60Hz ); 50Hz(Battery)
	Rated Current	27A		45A
	Output Power Factor	0.9
	Output Harmonic Wave	≤3% (Full R load)
	Crest Factor		3:1
	Output Overload	105%±5%＜Load≤125%±5%: Convert to bypass output and alarm after 1 min; 125%±5%＜Load≤135%±5%: Convert to bypass output and alarm after 30s; Load＞135%±5%: Convert to bypass output and alarm after 300ms.
Conversion time between Mains Power and Battery		0ms
Efficiency		＞92%
Battery	Rated Voltage	192Vdc
	Quantity	16
	Charging Current	1A	5.5A	1A	5.5A
Dimension (LxWxH) mm		533x260x560	425x190x328	533x260x560	533x260x501
Weight		55kg	12.2kg	62kg	21kg
Working Temperature		0℃-40℃
Working Humidity		20%-95% (non-condensing)
Noise		≤55dB
