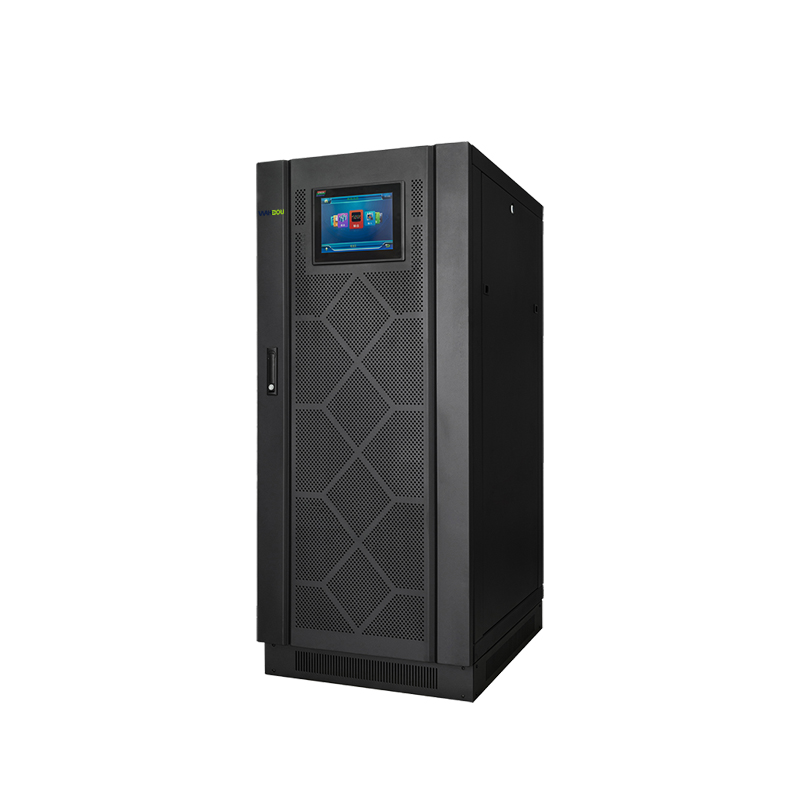

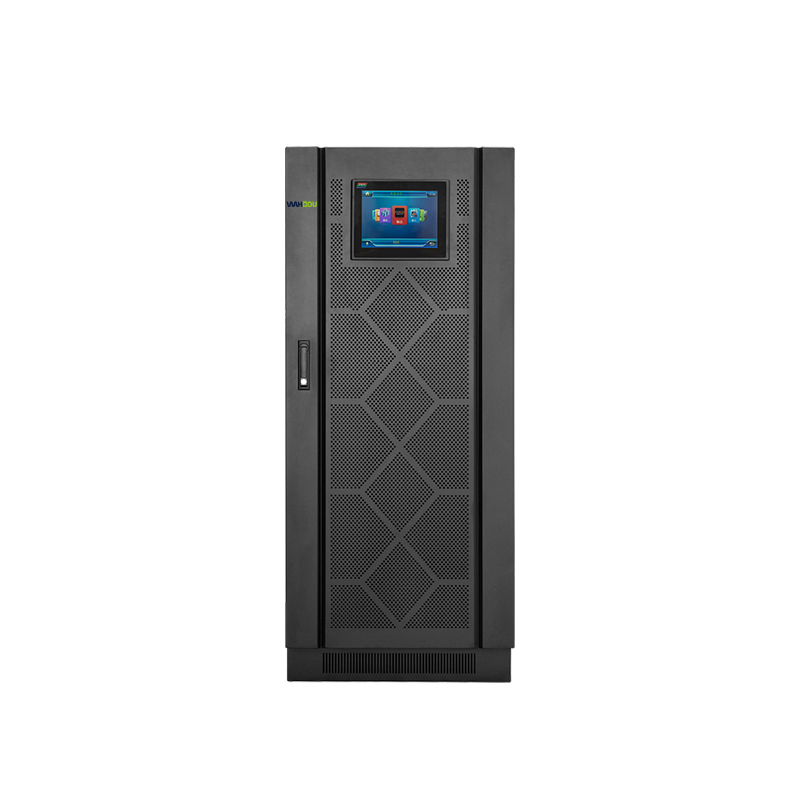

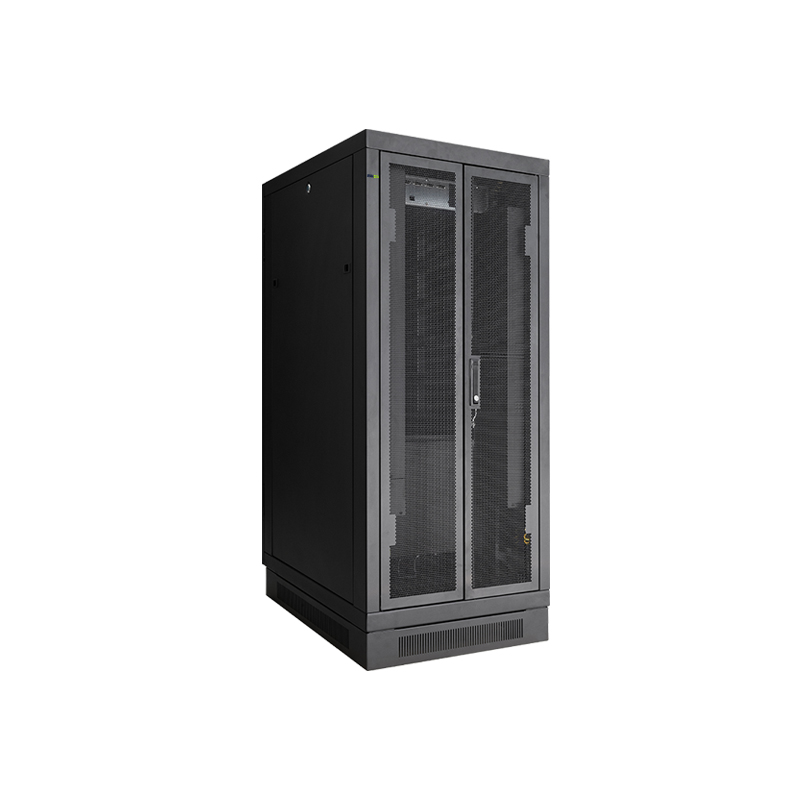

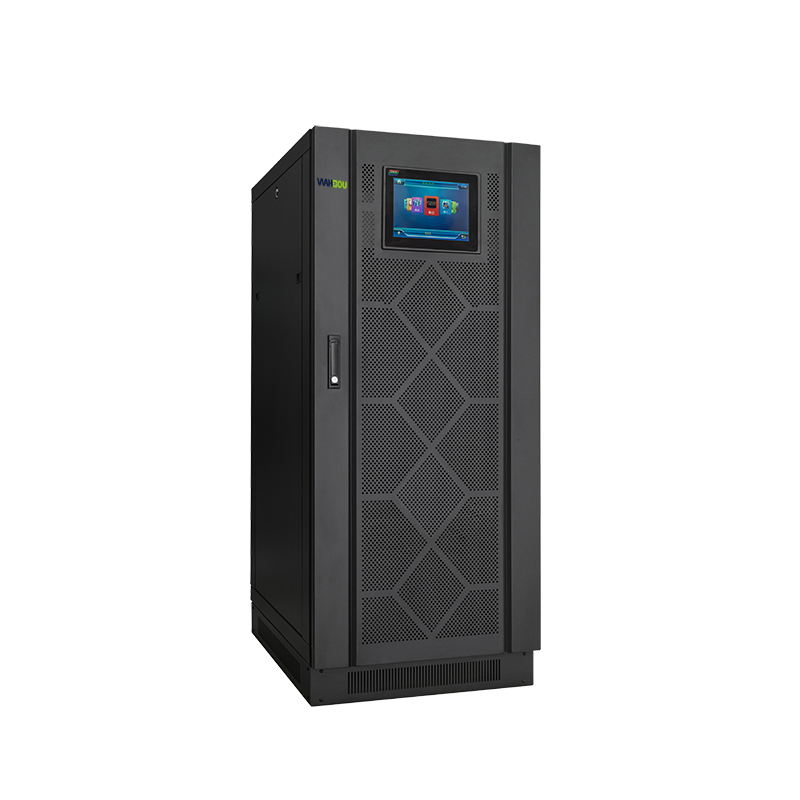

Modular UPS RM 30-300KVA

1. Digital Control

 All   parts of this series of UPS adopt digital control, each performance index of   UPS is very excellent, and the control system is more stable and   reliable.Each module has built-in automatic bypass switch and corresponding   bypass current equalizing inductor, providing good bypass power supply   equalization performance.

2.   High power density modular design

The capacity of each single module is 30kVA, and the height is   3U; UPS modules can be added and removed online to achieve zero maintenance   time.

3.   N+X parallel redundancy

The   quantity of redundant module can be set accordingly. When the redundant   module reaches more than 2 hours, the system availability achieves 99.99% ,   MTBF(Mean Time Between Failures) lasts more than 250,000 hours; Supporting   parallel connection between cabinets. A maximum of four cabinets can be   parallel, and battery pack can be shared when UPS cabinet in parallel.

4.   Color LCD display screen

Super large LCD   display with touching function. Chinese/English bilingual option; Single   module LCD/LED display.

5.   Intelligent Battery Management

Users   can set the charging current, constant current, constant voltage and floating   charging modes can be automatically and smoothly switched; Battery voltage   can be set ±192Vdc/±240Vdc/±216Vdc/±228Vdc/±240Vdc (32/34/36/38/40 pcs   optional)

6.   Standard Cabinet Design

The   appearance of the standard cabinet is beautiful and generous, which can   perfectly match the use environment of the computer room and save the space.

7.   Safe and easy to maintain

When   an emergency occurs, users can switch to the maintenance bypass to supply   power, and maintenance personnel can safely perform online maintenance; Press   EPO button to shutdown in emergent situation, and also have REPO function.

8.   Intelligent Management

Centralized   monitoring module (with hot-swap function), RS232/RS485 communication   interface/SNMP card (optional), can rea
